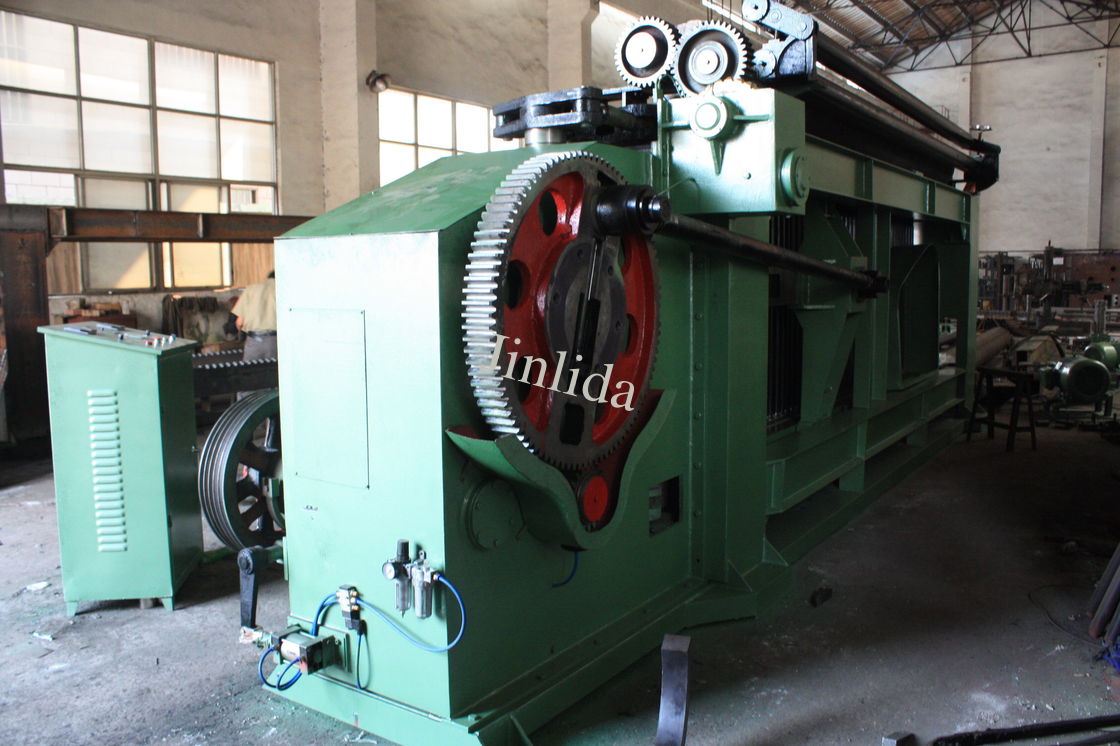

    Fullt Automatic 15Kw Gabion Hexagonal Mesh Machine With Zinc And PVC Galfan Coated

    Ask Lasest Price
    Brand Name : Jinlida
    Model Number : LNWL33-100-2
    Price : Competitive price
    Delivery Time : 50 days
    Payment Terms : L/C,T/T
    Supply Ability : 200 sets/ a year
    • Product Details
    • Company Profile

    Fullt Automatic 15Kw Gabion Hexagonal Mesh Machine With Zinc And PVC Galfan Coated

    15Kw Gabion Hexagonal Mesh Machine With Zinc And PVC Galfan Coated


    Quick Detail:


    1. Mesh sizes: 100X120mm

    2. twist: double twist

    3. Max. netting width: 3300mm

    4. Max. galvanized wire diameter: 3.2mm

    5. Max PVC wire diameter: 4.2mm

    6. Spindle Speed:25r/min

    7. Power: 15Kw

    8. Size: 7200 x 1400 x 2400mm

    9. Weight: 15MT

    10. Theoretic output: 225m/hr

    11. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop

    automatically

    12. Infrared ray safety protection system (option)

    13. Automatic oil system


    Description:


    Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also

    used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,

    road, bridge and civil engineering. It is one of the best against flooding material.


    The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh

    sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC

    coated wire is available.



    Packing


    Competitive Advantages:


    1. Jinlida company invented the first special equipment of double twisted wire netting making machine in

    China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area

    of gabion machine making for 15 years.


    2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to

    process, so the quality can be ensured.


    3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

    technician to help install the machines in your country, and also could supply all the spare parts with cost

    price if customer need.
