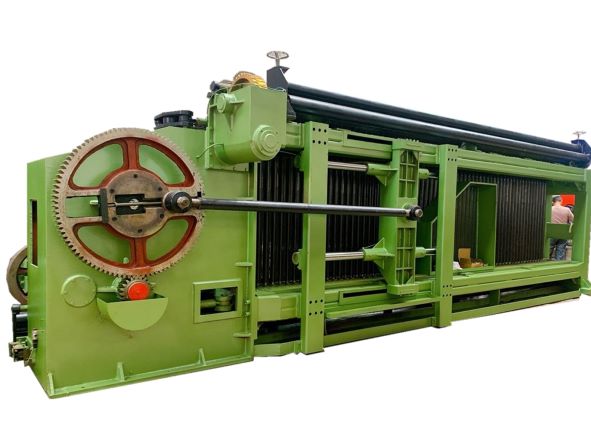

    Full Automatic Hexagonal Wire Mesh Netting Machine 60*80mm Gabion Mattress

    Ask Lasest Price
    Brand Name : JINLIDA
    Model Number : LNWL4
    Price : Competitive price
    Delivery Time : 50 days
    Payment Terms : L/C,T/T
    Supply Ability : 300 sets/a year
    • Product Details
    • Company Profile

    Full Automatic Hexagonal Wire Mesh Netting Machine 60*80mm Gabion Mattress

    Hexagonal Wire Mesh Netting Machine 60*80mm Gabion Mattress


    Quick Detail:


    1. Gabion machine is also known as hexagonal wire netting machine, which is the professional machine to produce hexagonal wire mesh.

    2. We can manufacture gabion machine according to your request.

    3. The hexagonal wire mesh machine we made adopts PLC control system and automatic oil system.


    Description:


    Product Namehexagonal wire mesh machineMaterialiron
    Coloras your requirementCertificationCE
    PatentZL 99229381.2 and
    ZL 00267066.5
    ControlPLC
    Power22kwWeight14t
    Mesh Size60x 80mmWidth3300mm
    Wire Diameter1.6-4.0mmSpindle Speed25 r/min
    Twist3rTheoretic Output165 m/h

    1.The reed pipes adopt seemless iron tube to increase inside diameter,it can put more spring wire and also can reduce the weight of machine, making machine work faster.(use eccentric reed pipes, do little harm to wire coating layer, reduce machine overload)

    2.The wire mesh machine uses big worm gear case, it reduces oil temperature to avoid worm burning hot.And the force of pulling mesh is greater.

    3.The machine can continuously work and run smoothly.It has low noise, when something wrong it will give an alarm and automatically stop.


    Specifications:

    -4H/

    double twist


    Mesh roller

    Ø

    -4HS/

    double twist


    Mesh roller

    Ø

    -4HS/

    five twist


    Mesh roller

    Ø

    -4H

    double twist knitting speed

    -4HS

    five twist knitting speed

    60*85/ 28mmØ180/ 5



    2520
    66*90/ 28mmØ191/ 5



    2520
    70*90 /30mmØ191/ 570*90/ 45mmØ215/ 570*105/ 55mmØ203.8/42520
    80*103/ 32mmØ215 / 580*115/ 45mmØ203/ 480*105/ 55mmØ203/ 42520
    88*105/ 32mmØ218/ 588*115/ 45mmØ203/ 488*105/ 55mmØ203/ 42520
    90*100/ 32mmØ218/ 590*115/ 45mmØ203/ 490*105/ 55mmØ203/ 42520
    100*120/ 32mmØ242/ 5100*125 /45mmØ217/ 4100*115/ 55mmØ217/ 42520
    110*140/ 32mmØ219/ 4110*126/ 45mmØ218/ 4110*116/ 55mmØ218/ 42520
    120*140/ 32mmØ219/ 4120*140/ 45mmØ295/ 5120*130/ 55mmØ295/ 42520
    Note:

    1. -4H: without servo program control, -4HS: with servo program control.

    2. Mesh roller item: ‘4’ or ‘5’ means thorn nails equal parts number(how many nails rows of one roller ).

    3. Double twist and five twist item: ‘32mm’, ‘45mm’, ‘55mm’ is twist length.

    4. -4H machine theoretic output: 25 double twist mesh hole every minute.

    5. -4HS machine theoretic output: 20 five twist mesh hole every minute.


    A set of gabion mesh machine is composed of hexagonal wire mesh machine,wire tension device, netting winding machine and spring coiling machine.


    Competitive Advantage:

    1.Precise design of complete machine, compact conformation, handiness and simplicity.

    2.Its product is widely used in petroleum, building, farming and chemical engineering industry, keep warm piping and other piping.

    3.Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.
