Automatic Hexagonal Wire Netting Machine 4mm / Spiral Coiling Machine


Quick Detail:

1. Quantity of spring bars: 4
2. Rotational speed of spring bar: 450r/min
3. Max length of spring coil: 1200mm
4. Layer of spring coil :=> 4
5. Max galvanized wire diameter: 4mm

Description:

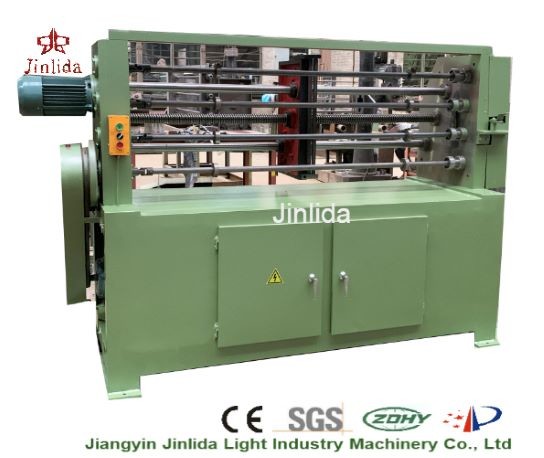

Type 1200-4 Spring Coiling Machine is assembled with LNWL-2 heavy duty hexagonal wire mesh machine
(gabion mesh making machine). The machine is equipped by four pieces of wire coiling bars, which can
rotate in synchrony by to-and-fro way for layers of wire-spiral-coiling, to increase the length of wire spiral
and to reduce the time of wire spiral changing during twisting to increase mesh-twisting efficiency.
This machine, after changing the preset exchange gears, can meet the wire-spiral-coiling function for different diameter of wires.
It has 4 pole spring, and these 4 pole spring can rotate at the same time when machine working and roll many levels to improve the efficiency. This kind of machine can also fit for different wire diameter.



Specifications:

1. Quantity of spring bars: 4
2. Rotational speed of spring bar: 450r/min
3. Max length of spring coil: 1200mm
4. Layer of spring coil :=> 4
5. Max galvanized wire diameter: 4mm
6. Max PVC wire diameter :=> 5
7. Motor power: 1.5kw
8. Overall size: 2200x90x1500mm

Competitive Advantages:

1. Jinlida company invented the first special equipment of double twisted wire netting making machine in
China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this
area of gabion machine making for 15 years.

2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to
process, so the quality can be ensured.

3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare
parts with cost price if customer need.

Jiangyin Jinlida Light Industry Machinery Co., Ltd., founded in 1998, has grown into a leading global GABION equipment provider. 80% of our products have been sold in more than 40 countries or regions, such as the RUSSIA,USA, UK, Canada, Taiwan area,Malaysia, Thailand, Italy, South Africa, North Africa, Iran, India, PH, VN, and Poland etc.

JINLIDA specialises in the manufacture of GABION products used in the Civil Engineering, Mining and Architectural Building Industries for the erection of retaining walls and river structures to reduce water flows and prevent soil erosion., and is widely used in the world. The establishment of such a factory in your country can meet the needs of the local market, and can also radiate to other countries.

We have insight into the continuous upgrading of customer needs, and are committed to building a "customer-centered, world-class integrated solution provider for gabion intelligent manufacturing", and are committed to providing customers with services from consulting, design, manufacturing, installation, commissioning One-stop integrated solution for training and subsequent upgrading to continuously improve customer experience.

JINLIDA and WAFIOS in Germany, VITARI in Italy, and NOVAS in Slovakia are both famous, providing professional solutions, products and services for the global market.

JINLIDA provides customers with GABION full-line intelligent solutions. As an international leading GABION intelligent equipment service provider, it has established cooperative relations with more than 50 national well-known GABION enterprises such as , and introduced first-class R&D teams to provide customers with full-line intelligent solutions. Now, Jinlida can provide gabion whole line equipment from gabion raw material detection, raw material online, automatic weaving, automatic straightening and shearing, automatic edging, winding, lamination, assembly system, etc., and equipped with independently developed production execution system to build an intelligent chemical factory for enterprises.

The complete set gabion production line including: gabion mesh making machine,spirial coiling machine ,wire tension device,netting roll winding machine, netting straightening machine,netting cutting machine,netting Transmission system,netting end winding up machine ,gabion box packing machine,selvedge wire straightening and cutting machine,wire payoff system etc.

We are very willing to establish a cooperative relationship with you and hope to maintain communication.
