Electrical Box Gabion Mesh Packing Machine , Wire Netting And Press Cutting Machine

Quick Detail:

1. Machine packing size (L*W*H): 3700x2450×1250mm

2. Packing size of gabion mesh: 2000×1000×1000mm

3. Hydraulic system working pressure: 5MPa

4. Hydraulic oil: 32# hydraulic oil 120KG

5. Machine power: 5.5Kw

Description:

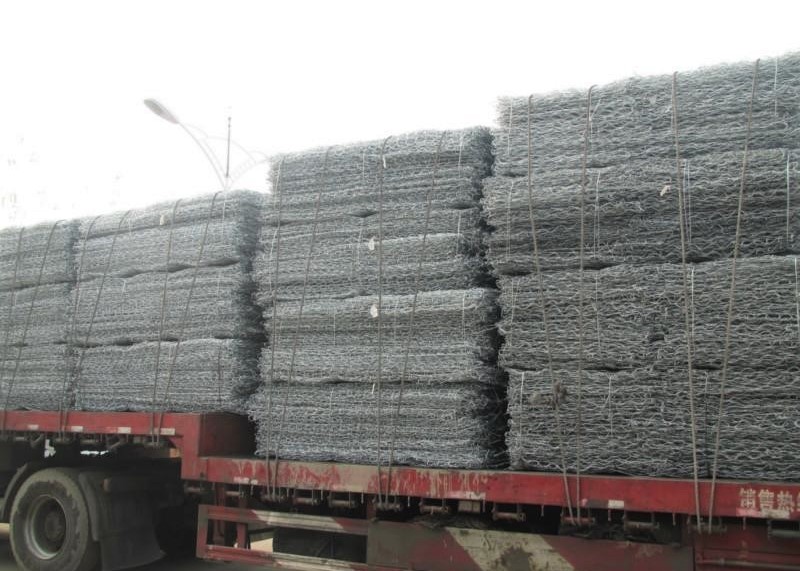

Gabion mesh Packing Machinery is dedicated for gabion mesh's packing, press the gabion to smaller CBM.

The machine has an independent power sector and electrical systems, using the button to centralized

control. The machine consists of rack, pressure plate, oil cylinder, oil pump unit, tank, electrical box and so

on. It can produce as your requirement.

You can see gabion packing machine working on Youtube:

https://youtu.be/xoeQnaCPtQo

Operating principle

When the machine work, oil pump unit provide the pressure oil via safety valve limit the pressure and enter

manual reversing valve, when manual reversing valve work on the left, pressure oil enter on the oil cylinder

via piston, piston rod pull pressure plate run downwards, the down oil of the oil cylinder stream back to tank

via reversing valve. When Manual reversing valve work in the middle, the up and down oil of oil cylinder will

be closed by reversing valve, pressure plate can keep pressure and stay on anywhere, oil cylinder

discharge loads via reversing valve, when reversing valve work on the right, pressure oil enter down part of

oil cylinder pull pressure plate run upwards, the up part oil of the oil cylinder flow back to tank via reversing

valve.

Above of the oil cylinder arranges the middle device, can decrease the pressure and run to the up limit.

Specifications:

1. Overall size: 2340mmx1050mmx2350mm
2. Power: 5.5kw
3. Max Packing Size: 2mx1mx1m (packing size also can produce as your requirements)
4. Work Pressure: 380V
5. Weight: 3000kgs

Competitive Advantages:

1. All the parts of netting sheet cutting machine are processed by our own factory, no parts were send to

outside to process, so the quality can be ensured.

2. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.

Jiangyin Jinlida Light Industry Machinery Co., Ltd., founded in 1998, has grown into a leading global GABION equipment provider. 80% of our products have been sold in more than 40 countries or regions, such as the RUSSIA,USA, UK, Canada, Taiwan area,Malaysia, Thailand, Italy, South Africa, North Africa, Iran, India, PH, VN, and Poland etc.

JINLIDA specialises in the manufacture of GABION products used in the Civil Engineering, Mining and Architectural Building Industries for the erection of retaining walls and river structures to reduce water flows and prevent soil erosion., and is widely used in the world. The establishment of such a factory in your country can meet the needs of the local market, and can also radiate to other countries.

We have insight into the continuous upgrading of customer needs, and are committed to building a "customer-centered, world-class integrated solution provider for gabion intelligent manufacturing", and are committed to providing customers with services from consulting, design, manufacturing, installation, commissioning One-stop integrated solution for training and subsequent upgrading to continuously improve customer experience.

JINLIDA and WAFIOS in Germany, VITARI in Italy, and NOVAS in Slovakia are both famous, providing professional solutions, products and services for the global market.

JINLIDA provides customers with GABION full-line intelligent solutions. As an international leading GABION intelligent equipment service provider, it has established cooperative relations with more than 50 national well-known GABION enterprises such as , and introduced first-class R&D teams to provide customers with full-line intelligent solutions. Now, Jinlida can provide gabion whole line equipment from gabion raw material detection, raw material online, automatic weaving, automatic straightening and shearing, automatic edging, winding, lamination, assembly system, etc., and equipped with independently developed production execution system to build an intelligent chemical factory for enterprises.

The complete set gabion production line including: gabion mesh making machine,spirial coiling machine ,wire tension device,netting roll winding machine, netting straightening machine,netting cutting machine,netting Transmission system,netting end winding up machine ,gabion box packing machine,selvedge wire straightening and cutting machine,wire payoff system etc.
