    Automatic Gabion Making Machine For Mattress 66*90mm Low Noise

    Ask Lasest Price
    Brand Name : JINLIDA
    Certification : ISO9001, ISO14000
    Model Number : LNWL4
    Price : Competitive price
    Delivery Time : 40 days after order confirmed
    Payment Terms : L/C,T/T
    Supply Ability :
    • Product Details
    • Company Profile

    Automatic Gabion Making Machine For Mattress 66*90mm Low Noise

    Automatic Gabion Machine for Mattress 66*90mm Gabion Basket, Low Noise


    Quick Detail:

    1. Gabion machine is also known as hexagonal wire netting machine, which is the professional machine to produce hexagonal wire mesh.

    2. Jinlida series machines are designed to make gabion mesh of various widths and mesh sizes, we can produce the machine as your size.

    Why chose Jiangyin Jinlida for your projects?

    1. Jinlida is the earliest and largest manufacturer of gabion structures in China.

    2. Member of Chinese Hydraulic Engineering Society(CHES).

    3. Member of China Institute of Water Resources.

    4. Editor unit of China gabion engineering and technology standard.

    5. The only one enterprise recommended by China Ministry of Water Resources in the field of gabion structures.

    6.Strictly implement and meet international standard ASTM STANDARD or BS EN STANDARD and pass ISO &

    SGS quality certificate system.


    Specifications:

    special mesh size available on request.

    -4H/

    双绞

    double twist

    拉网辊

    Mesh roller

    Ø

    -4HS/

    双绞

    double twist

    拉网辊

    Mesh roller

    Ø

    -4HS/

    五绞

    five twist

    拉网辊

    Mesh roller

    Ø

    -4H

    双绞捻网速度double twist knitting speed

    -4HS

    五绞捻网速度

    five twist knitting speed

    60*85/ 28mmØ180/ 5



    2520
    66*90/ 28mmØ191/ 5



    2520
    70*90 /30mmØ191/ 570*90/ 45mmØ215/ 570*105/ 55mmØ203.8/42520
    80*103/ 32mmØ215 / 580*115/ 45mmØ203/ 480*105/ 55mmØ203/ 42520
    88*105/ 32mmØ218/ 588*115/ 45mmØ203/ 488*105/ 55mmØ203/ 42520
    90*100/ 32mmØ218/ 590*115/ 45mmØ203/ 490*105/ 55mmØ203/ 42520
    100*120/ 32mmØ242/ 5100*125 /45mmØ217/ 4100*115/ 55mmØ217/ 42520
    110*140/ 32mmØ219/ 4110*126/ 45mmØ218/ 4110*116/ 55mmØ218/ 42520
    120*140/ 32mmØ219/ 4120*140/ 45mmØ295/ 5120*130/ 55mmØ295/ 42520
    Note:

    1. -4H:不带伺服程序控制,-4HS:带伺服程序控制.

    -4H: without servo program control, -4HS: with servo program control.

    2. Ø拉网辊外径后面-4或-5为圆周上的拉网齿等分.

    Mesh roller item: ‘4’ or ‘5’ means thorn nails equal parts number(how many nails rows of one roller ).

    3. 网孔规格-32,-45,-55为网孔绞合部分的长度尺寸.

    Double twist and five twist item: ‘32mm’, ‘45mm’, ‘55mm’ is twist length.

    4. -4H型机设定每分钟理论生产速度为25个双绞网孔.

    -4H machine theoretic output: 25 double twist mesh hole every minute.

    5. -4HS型机设定每分钟理论生产速度为20个五绞网孔.

    -4HS machine theoretic output: 20 five twist mesh hole every minute.


    Packing&Delivery:

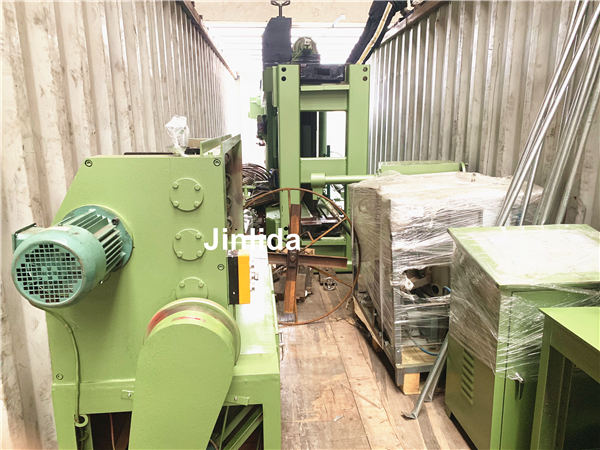

    Packing Details: Nude packing and will be fixed in the 40'container by iron wire

    Lead Time:40 days


    Machine Features

    1. Adopted with central automatic lubrication system, so as to make feeding guideway to have the good performance for little resistance, little friction, good lubrication and long life etc.

    2. PLC control system touch screen is available for the hexagonal wire mesh machine.

    3. Automatic stop system saves much labor force.


    Advantages

    1.We have persevered in this area of gabion mesh machine for 15years.Jinlida invented the first special equipment of double twist wire netting machine in China(ZL99229381.2 and ZL00267066.5).

    2.Every part of gabion mesh machine is high quality,they are assembled by skilled workers who have years of experience.

    3.We provide 12months guarantee for all the equipment,and if customers need,we will arrange our professional technician to help install the machines in your country,and also can supply all the spare parts at cost price if customers need.
